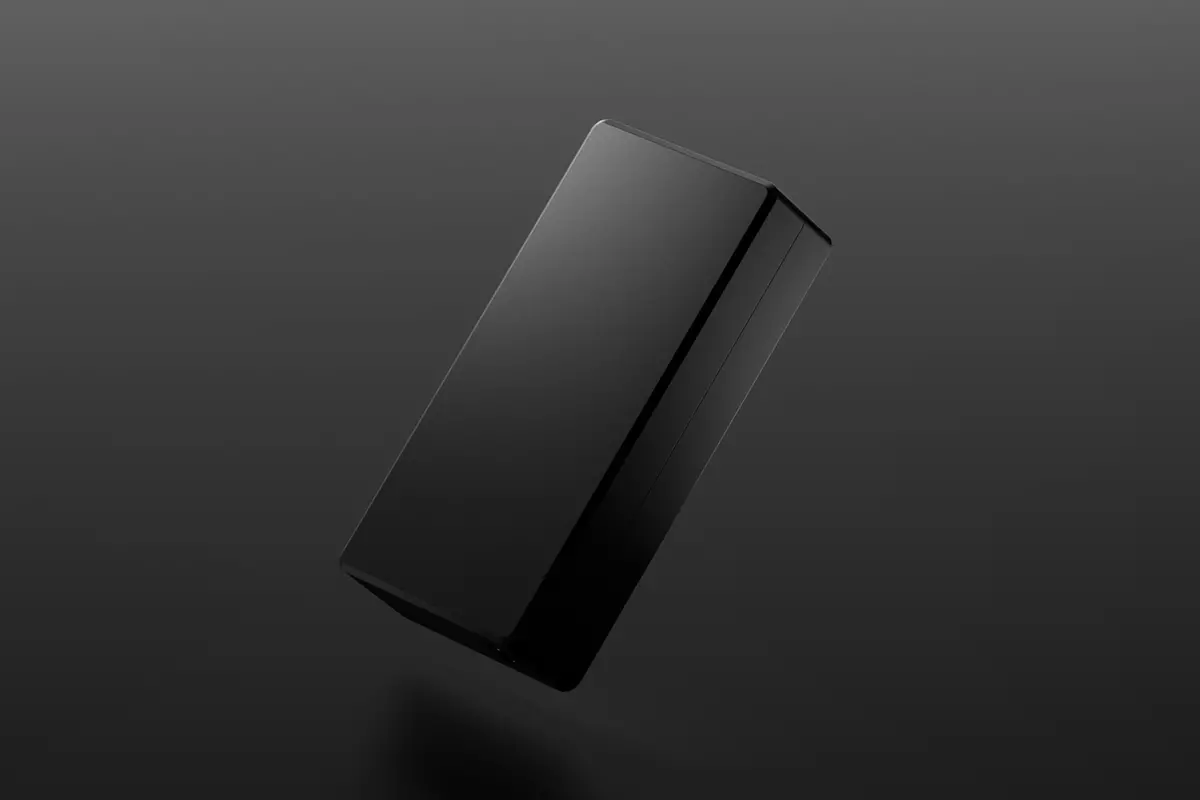

DJI 240W Power Adapter

Features one SDC output port and one USB-C output port, suitable for charging compatible charging hubs, remote controllers, or other mobile devices that can be charged via USB-C port.

1. DO NOT attempt to touch the metal terminals on the battery ports.

2. Clean the metal terminals on the battery case with a clean, dry cloth if there is any noticeable buildup.

3. The charger specifications may vary depending on the region of purchase; please refer to the plug specifications at the time of purchase.

240W Power Adapter × 1

Type-C Cable × 1

Power Adaptor AC Cable*

* The plug type and quantity of the included AC cable may vary by country or region. Refer to the actual product you receive.

Product Model: CDX230-240

Input Voltage: 100-240 V (AC), 50-60 Hz, max 3 A

Output Power: Max 240 W (total), Max 65 W (USB-C)*

Operating Temperature: 5° to 35° C (41° to 95° F)

Charging Time*:

DJI Matrice 4D Series Battery: charging one battery from 15% to 90% takes only 30 minutes

* When both charging ports are used simultaneously, the USB-C port's maximum output power is 45 W. Charging time may be slightly extended.

DJI Matrice 4D Series

DJI Matrice 4 Series*

* Requires use with the DJI Matrice 4 Series Charging Hub (200W).
