Overview

The Phantom 4 Battery Charging Hub is designed for use with the Phantom 4 Intelligent Flight Battery. When used with the Phantom 4 Battery Charger, it can charge up to three Intelligent Flight Batteries. The Intelligent Flight Batteries will be charged in sequence according to their power levels, from high to low. It will take approximately 3.5 hours to fully charge three Intelligent Flight Battery. Storage Mode allows the Charging Hub to keep the Phantom 4 Intelligent Flight Battery at a 50% charge, which is ideal for storage.

Phantom 4 Intelligent Flight Battery Charging Hub User Manual

Highlights

Charge three batteries in sequence. Smart, quick, and reliable.

Tips

The Battery Charging Hub does not include a charger. Please use it together with a standard charger.

In the Box

Phantom 4 Series - Battery Charging Hub ×1

Specifications

Model: PHANTOM 4 CHARGING HUB
Compatible Battery Charger: Phantom 4 Charger (PH4C100)
Compatible Battery Model: PH4-5350mAh-15.2V; PH4-5870mAh-15.2V
Operating Temperature: 41° to 104℉ (5° to 40℃)
Operating Voltage: 17.5 V
Charging Time* (Three Batteries): 3 hr 30 min
Weight: 162 g
*The charging time was tested in a lab environment at room temperature (25℃) and should be taken as reference only.

Compatibility

Phantom 4 Series - Intelligent Flight Battery (5870mAh, High Capacity)
Phantom 4 Series - Intelligent Flight Battery (5350mAh)
Phantom 4 Series - 100W Battery Charger
Phantom 4 Series 160 W Battery Charger

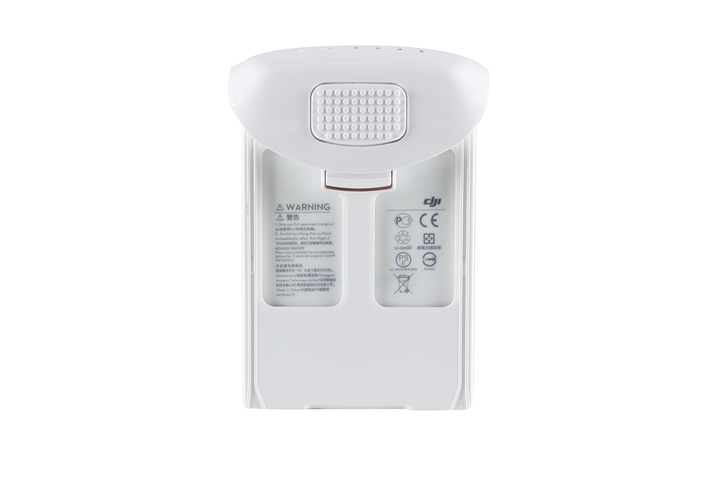

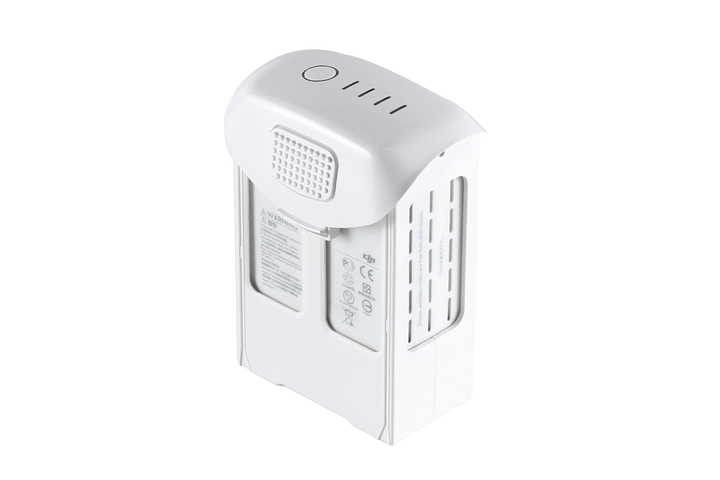

Phantom 4 Series Intelligent Flight Battery
