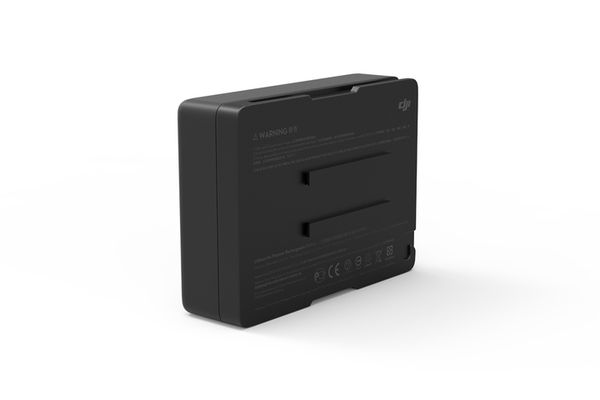

The TB50 Intelligent Battery is 4280 mAh-22.8 V. It is also used on Inspire 2 and Ronin 2, which means batteries of DJI Ronin 4D, Ronin 2, and Inspire 2 are interchangeable. With two fully-charged TB50 Intelligent Batteries, the Ronin 4D gimbal system will last up to 2 hours. The actual operating time is subject to application scenario of the Z-Axis.

In The Box

TB50 Intelligent Battery × 1


Capacity: 4280 mAh

Voltage: 22.8 V

Battery Type: LiPo 6S

Energy: 97.58 Wh

Net Weight: Approx. 515 g

Charging Temperature: 41° to 104° F (5° to 40° C)

Operating Temperature: 14° to 104° F (-10° to 40° C)

Max Charging Power: 180 W
