Overview

Utilizes the STM32F051 main control system, strengthening the refresh rate up to 48Mhz.

Equipped with a 3-in-1 independent half-bridge driver chip.

Utilizes the Japanese TOSHIBA MOSFET, making it able to withstand 40 V and an internal resistance of 0.85m OH.

Designed to guarantee the reliability of ESC and meet the needs of the FPV market.

High TG PCB board provides stable performance in extreme conditions.

Onboard 10V BEC delivers cleaner power supply to the FC and can also be used to connect other devices.

Highlights

Powerful performance, high reliability, faster response, high-powered.

Tips

For aftersales service contact: fpvservice@rctigermotor.com

In The Box

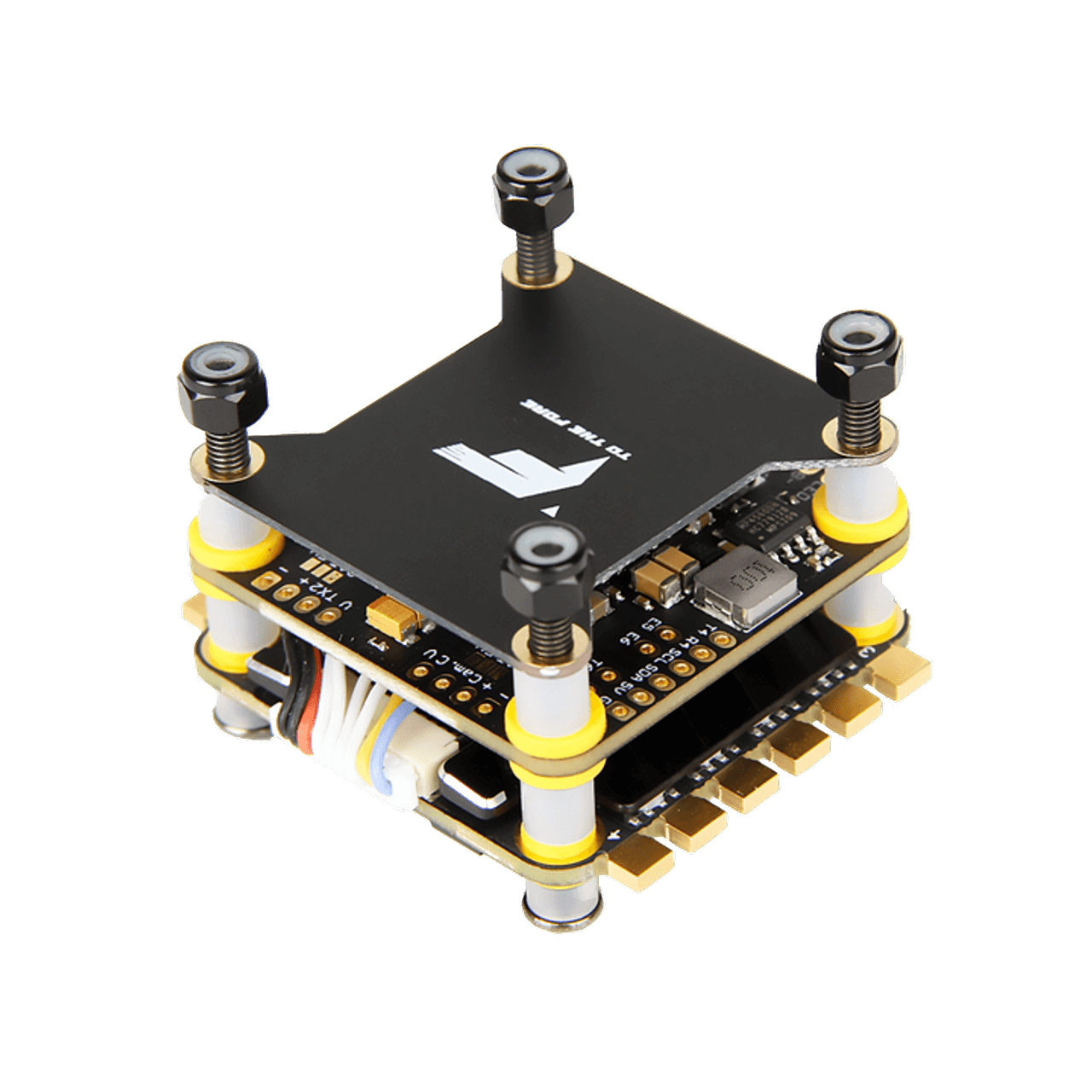

T-Motor F55A PRO II + F4 HD STACK × 1

M3×30 Screw × 4

M3 Non-Slip Nut × 4

M3×3 White Hollow Isolation Column × 4

M3×3 White Hollow Isolation Column × 12

Insulation Sheet × 1

Electrolytic Capacitor × 1

Power Cord × 1

Link Board × 4

Graph Connection Line × 2

ESC Cable × 2

Round and Strips F Stickers, T-Motor Sticker × 1

Specifications

F55A PRO II ESC -32BIT

BEC: 10V@2A

Voltage: 4S-6S

Weight: 17.5 g

Size: 45 × 41 × 7.3 mm

Installation hole distance: 30.5 × 30.5 mm

F4 Flight Control

Gyro: MPU6000

Master chip: STM 32 F 405 RGT 6

Mounting hole: 30.5 × 30.5 mm

Weight: 7 g

Size: 37 × 37 × 7 mm

Firmware: TMOTOR F4(Betaflight)

Compatibility

DJI Digital FPV System
